1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer

FOB Reference Price:Get Latest Price
$5,000.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
UD-3212LD
Report Suspicious Activity
Overview
Quick Details
Gross Power:
1800W
Color & Page:
MULTICOLOR
Certification:
CE
Usage:
indoor/outdoor advertisement printing
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Galaxy
Dimensions(L*W*H):
L4,590 x W1,100 x H940mm
Weight:
547kg
Automatic Grade:
Automatic
Voltage:
220v/110v
Type:
Digital Printer
RIP software:Maintop or Photoprint:
media type: Vinyl,Polyester,Flex,Back-lit Film,PS board,KT board
Function: printing on ceiling film:
Type: Digital Printer
Condition: New:
printhead:2PCS DX5 head
available size: 3.2m:
printhead height ( adjustable ): above media adjustable
speedy:33sqm/h:
Warranty: one year
Place of Origin: guangdong China:
Brand Name: galaxy
RIP Software: Maintop:
Print Interface: USB2.0
Resolution: 1440dpi:
Ink Type:dx5 eco solvent ink
Printhead Model: dx5 print head:
Printhead Quantity: 1 or 2pcs
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood,standard for export
Port
HuangPu(gunagzhou) or Shenzhen



Our Services

 1,Big Discount!Best quality and after-service.

 2,Welcome to jion our working team ,you will find that we are the same channel !!

We will provide you

1, One year warranty                2, English RIP and Promon printingsoftware
3,Online trainning support        4, Big Discount and patient friendly service

Product Description

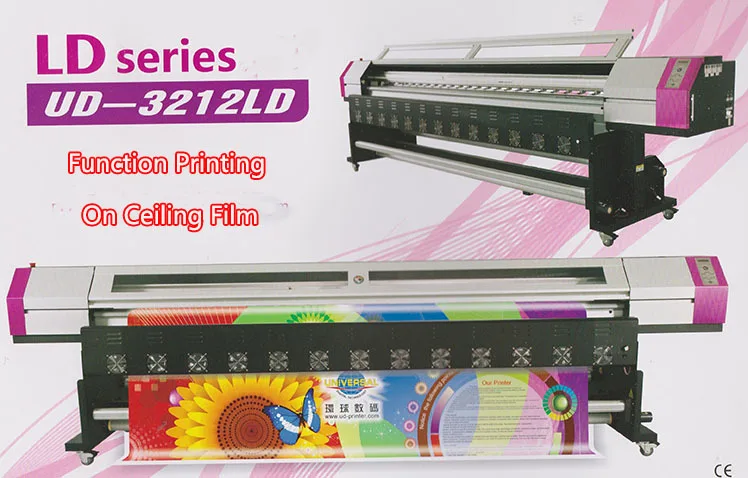

1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer

1, functiion for printing on ceiling film

2,Can print both roll to roll printing media and work with flatbed ,print directly on PS and KT board

3, Work  with one or two DX5 head

4,1440dpi High resolution, CMYK 4 color printing

5,Suitable for both indoor and outdoor printing

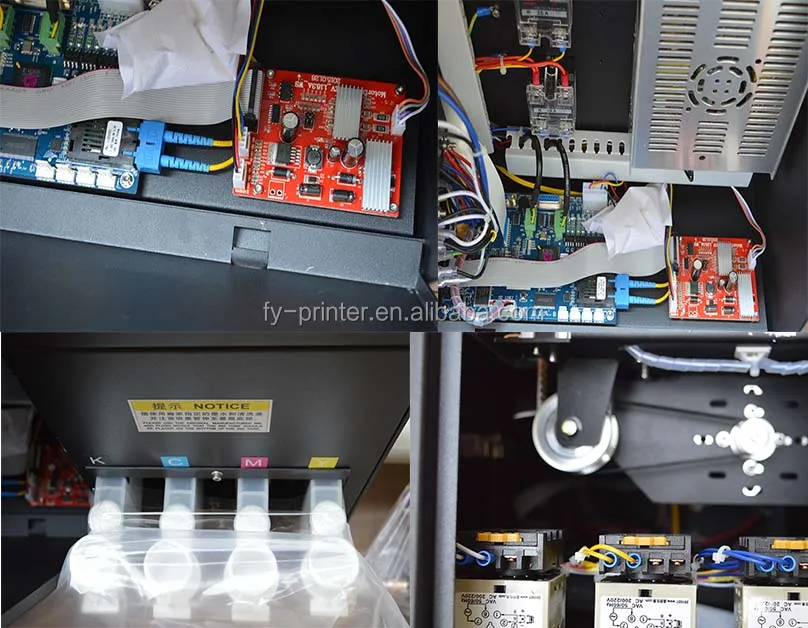

Some more parts from  1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer



1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer with function for printing on ceiling film



 Technical Data of 1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer

MODEL

UD-3212LD

Printing Width

3,200mm

Material Width

3,300mm

Printhead

 DX5

Number of Printhead

2







Print Speed (m2/h)

Print mode

Standard output(m2/h)

RD

2PASS 65

D

3 PASS 44

S

4 PASS 33

Q

6 PASS 22

HQ

8 PASS 16

BL

12 PASS 11

ink

Type

UV Ink

Color

Double(C Y M K)

Capacity

1L Per Main Tank Of Each Color

Ink supply system

Auto Ink Supply System

Media Type

Ceiling film,Vinyl,Polyester,flex,back-lit film,PS mBoard,KT board,PVC foam,etc

Auto Media Feeding System

Equipped 40KG max Media Weight 40KG

Auto Cleaning System

Anti-clogged Flash Funtion & Capping system

Pre-heating &Drying system

Equipped

Clamp

Equipped

Interface

USB2.0

Printhead  Height

2 to 10mm from media

RIP Software

Maintop,Ultraprint,Photoprint,Wasatch,Onyx

Input Power

AC 110,50HZ/60HZ

Operation Enviroment

Humidy:20% -80%(reconmmend:40% -60%)    Tempreture:15 -35(reconmmend:20 -32)

Printer Dimension/Weight

L4,500 x W905 x H1,260mm / 304KG

Package Dimension/Weight

L4,590 x W1,100 x H940mm / 547KG

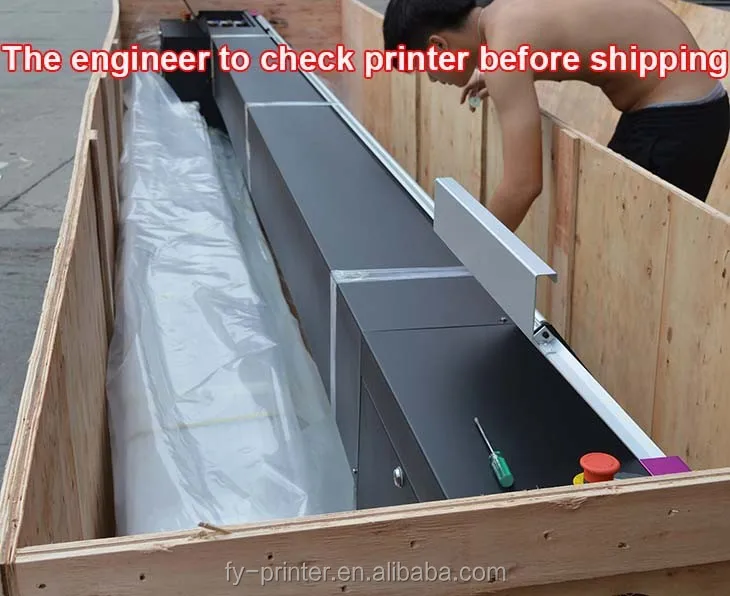

Packaging & Shipping



Export much container 1.6m 1.8m 3.2m Print head DX5 DX7 Large format Eco solvent printer to oversea



Company Information

 Welcome to visit the factory  you will learn more.





Related Products

Original sk4 ,Galaxy dx5 ,UV  ink

 Some more parts from our company

 Our customers from

 Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia

 South America:  Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,

 North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras

 European :Poland ,France , Spain , Russia, Portugal  .....

 Asia :Fiji , Iraq , Afghanistan  , Saudi Arabi ,UAE ,  the Philippines , Bangladesh Thainland ...

For more information ,please feel free to contact as following:

WhatsApp:+86 13829753425

WeChat: 13829753425

Skype: fy-printer01
