Quick Details

  • Type: Inkjet Printer
  • Condition: New
  • Plate Type: Screen Printer
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Challenger/Infiniti
  • Model Number: FY-3278N
  • Usage: Large format advertisment printing
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: AC220v, 50HZ/60HZ
  • Gross Power: 660w
  • Dimensions(L*W*H): 4630mm*860mm*1340mm
  • Weight: 692kg
  • Certification: CE Cetification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • color:C/Y/M/K: Warranty: one year
  • speedy:157sqm/h: printhead:8pcs SPT510/50PL
  • RIP software:Maintop or Photoprint: media type: Vinyl,Polyester,Flex,Back-lit Film,
  • available size: 3.2m: printhead height ( adjustable ): above media adjustable

Packaging & Delivery

Packaging Details Plywood,standard for export



Our Services



1,Big Discount!Best quality and after-service.

2,Welcome to jion our working team ,you will find that we are the same channel !!



We will provide you

1, One year warranty                2, English RIP and Promon printingsoftware
3,Online trainning support        4, Big Discount and patient friendly service

Product Description

Original Infiniti challenger FY-3278N large format 3.2m SPT510 head solvent printer









Good quality printing from Original Infiniti challenger FY-3278N large format 3.2m

SPT510 head solvent printer

Tichnical data for Original Infiniti challenger FY-3278N large format 3.2m

spt510 head solvent printer

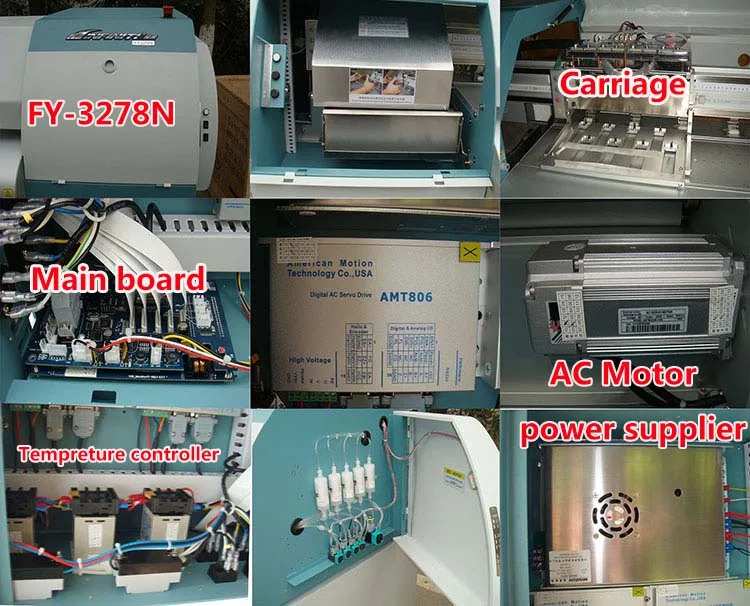

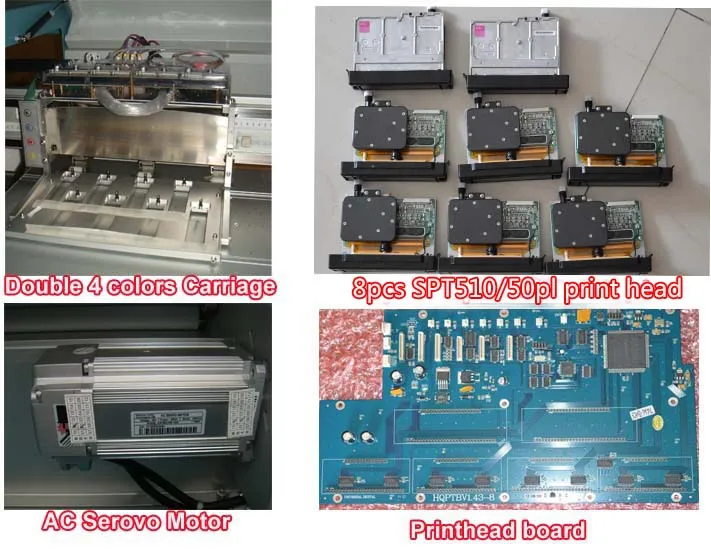

1, Equipped with 8 SPT 510-50PL print heads.

 2, AC servo motor used to run the carriage quicker and more stable.

 3, Individual color cleaning minimizes the waste of the ink;

 4, 3 way intelligent heater (pre/print/post) helps bring more vivid output

Model
FY-3278N
Printhead
 SPT510-50PL
Number of Printhead
4 or 8 Heads
Max Print Width
3,200mm(125.98inch)
Print Speed
157m²/hr Draft 2Pass
109m²/hr Standard 3Pass
91m²/hr Quality 3Pass
46m²/hr Compensation 3Pass
Media
Max width
3,300mm(129.92'inch)
Max Weight
Roll media:80kg
Type
Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film
Thickness
4.5mm (Max.)
Heating System
3 way intelligent heater
Auto Media Feeding&
Equipped
Ink
Type
Solvent C,M,Y,K ink.
Capacity
1L or 5L per Color Main Tank
Auto Cleaning System
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface
USB 2.0
Power Specification
AC 220V/230V 50Hz/60Hz 2300W
Operational Environment
Temperature20°C-28°C Humidity40%-60%
Compatible RIP Software
Photoprint, UltraPrint,Topaz, Wasatch, Caldera, Maintop
Dimension & Weight
Machine
L4,630mm X W860mm X H1,340mm 680kg
Package
L4,650mm X W970mm X H1,550mm 780kg





Packaging & Shipping

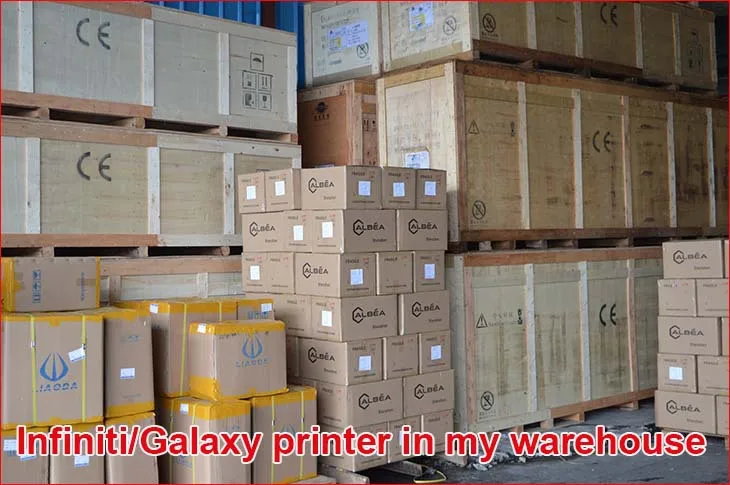

Original Infiniti challenger FY-3278N large format 3.2m spt510 head solvent printer in my warehouse

Export much container Original Infiniti challenger FY-3278N large format 3.2m spt510 head solvent printer to oversea







Company Information

 Welcome to visit the factory  you will learn more.

Related Products

Original sk4 ,Galaxy dx5 ,UV  ink

 Our customers from

 Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia

 South America:  Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,

 North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras

 European :Poland ,France , Spain , Russia, Portugal  .....

 Asia :Fiji , Iraq , Afghanistan  , Saudi Arabi ,UAE ,  the Philippines , Bangladesh Thainland ...

For more information ,please feel free to contact as following:

skype: fy-printer01   laisheng99

whatsApp:+86 13829753425  +86 13533329690
